PSH: extremely stable, palletless shipping units

With palletless technology only 40% of usual wrapping costs apply. The palletless pack can be universally employed in core industrial sectors.

PSH-1 (1 HSA)

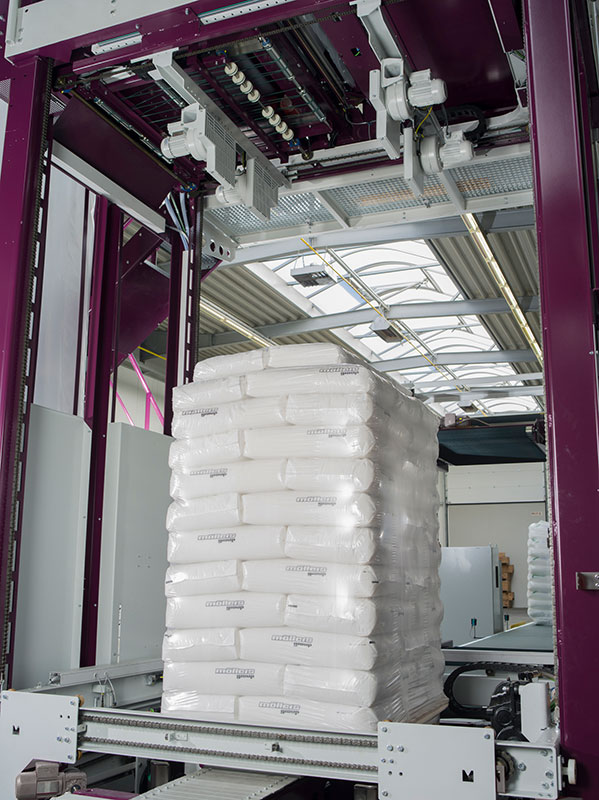

The complete line with HSA and pack turning device – the pack is reversed to finalize the stretch process. Capacity: up to 40 packs/hour.

PSH-2 (2 HSA)

Maximum performance with time-saving is offered by the  PSH-2 with two sequential stretch-hooder machines between which the pack turning device is located. Capacity: up to 100 packs/hour.

Your Benefits

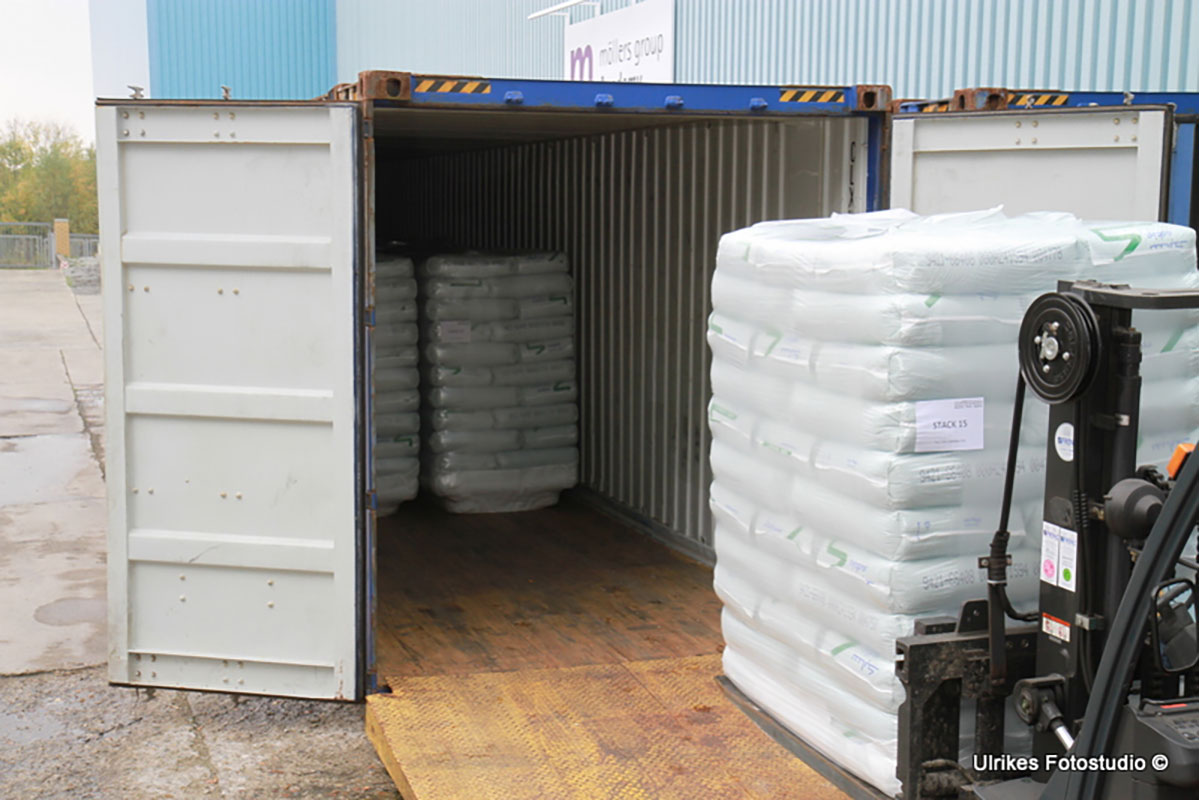

  • Perfect transport unit even for long export routes
  • Subjected to inertial forces, the palletless pack is more stable than the variant with pallet.
  • Maximum economy: Only 40% of the usual wrapping costs apply
  • Effective product protection from contamination and theft
  • Transport-stable and watertight
  • High load flexibility: Optimization of truck logistics
  • Low energy consumption
  • Pallet costs and complex logistcs are eliminated
  • Environmentally friendly: The film load unit is completely recyclable

Möllers Group Academy

Bring your products! The live performance of our full-line training system will convince you!

Technical details

Technical data palletless line

  • Pack dimensions petrochemcals: material-dependent, up to B 1100 × L 1300 × H 1920mm
  • Pack dimensions building materials industry: material-dependent, up to B 1000 × L 1200 × H 1170mm
  • Pack dimensions fertilizer industry: B 800-1200 x L 1200-1400 × H 1000-1400mm
  • Pack weights: up to 2.2t
  • Film densities: 80-140μm
  • Packing capacity: 40 to 100 packs/h

Patents

  • EP 2036818 counter hood stretch I
  • EP 2248722 counter hood stretch II
  • EP 2322433 palletless, high-bay storage
  • EP 2012/000471 Palletless, one hood
  • EP 16194389.9 Palletless, 4-Way load unit
